Peluso Microphone Lab 22 47 SE Vacuum Tube Large Diaphragm Condenser Microphone

Peluso 22 47 SE Large Diaphragm Tube Condenser Microphone

The Peluso 22 47 SE is a faithful reimagining of the legendary Neumann U-47, designed to deliver the warmth, depth, and presence that made the original a go-to mic for iconic vocal and instrumental recordings. By using the 5693/6SJ7 American-style steel tube, Peluso captures the signature tone of the classic VF14 — with the added benefit of a quieter noise floor and increased availability for long-term reliability.

Whether you're recording rich male vocals, breathy female leads, acoustic guitars, or brass and reeds, the 22 47 SE offers smooth midrange, lush low-end detail, and a balanced high-frequency response. It's a true workhorse that brings vintage magic to modern productions — at a more accessible price point than its LE counterpart.

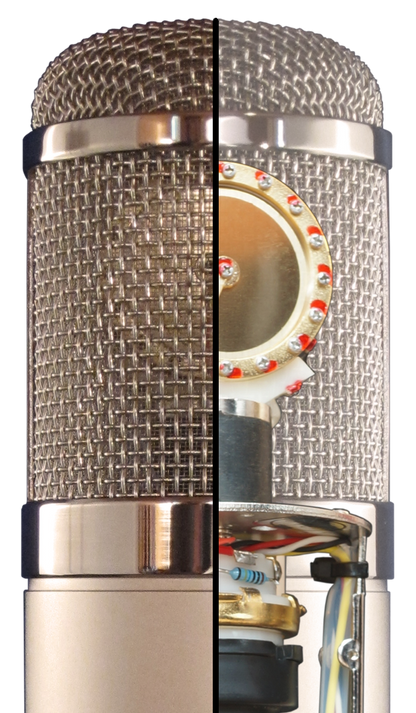

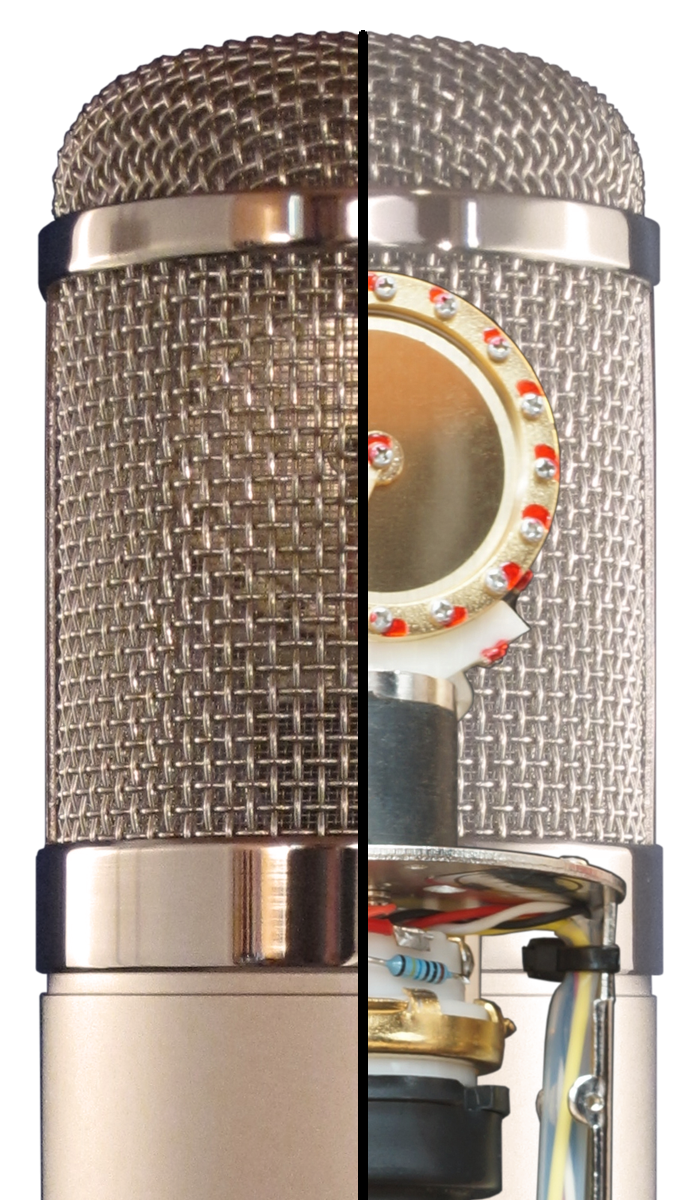

The mic features a dual-sided 34mm capsule and is paired with Peluso’s MX-56 power supply, which offers 9 switchable polar patterns from omnidirectional to figure-eight. A heavy-duty 8-pin screw-on cable assembly ensures long-lasting durability and a clean signal path — ideal for professional studio environments.

What’s Included:

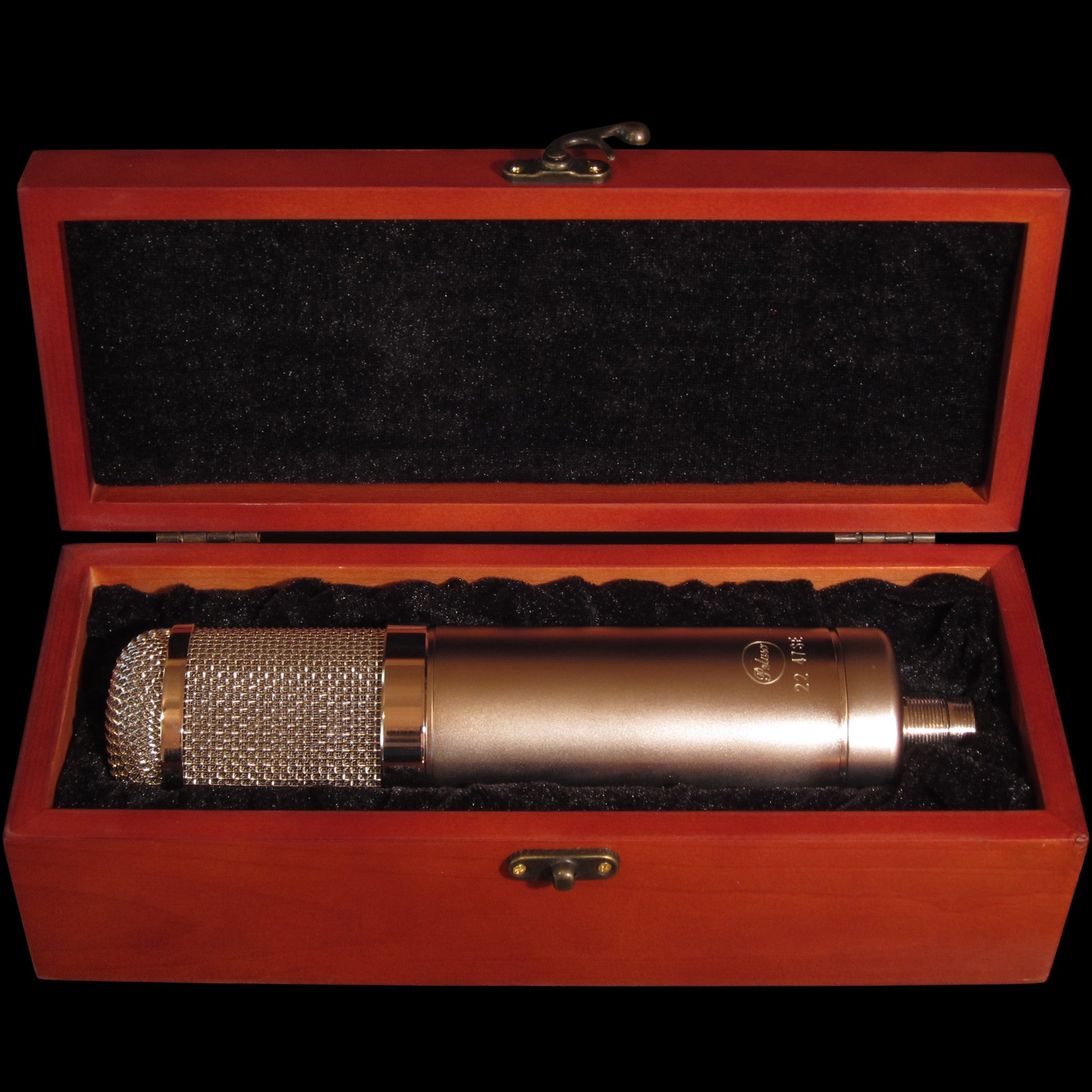

• Peluso 22 47 SE microphone in a handcrafted wood box
• MX-56 power supply with 9 polar pattern settings
• Rugged 8-pin screw-on cable assembly

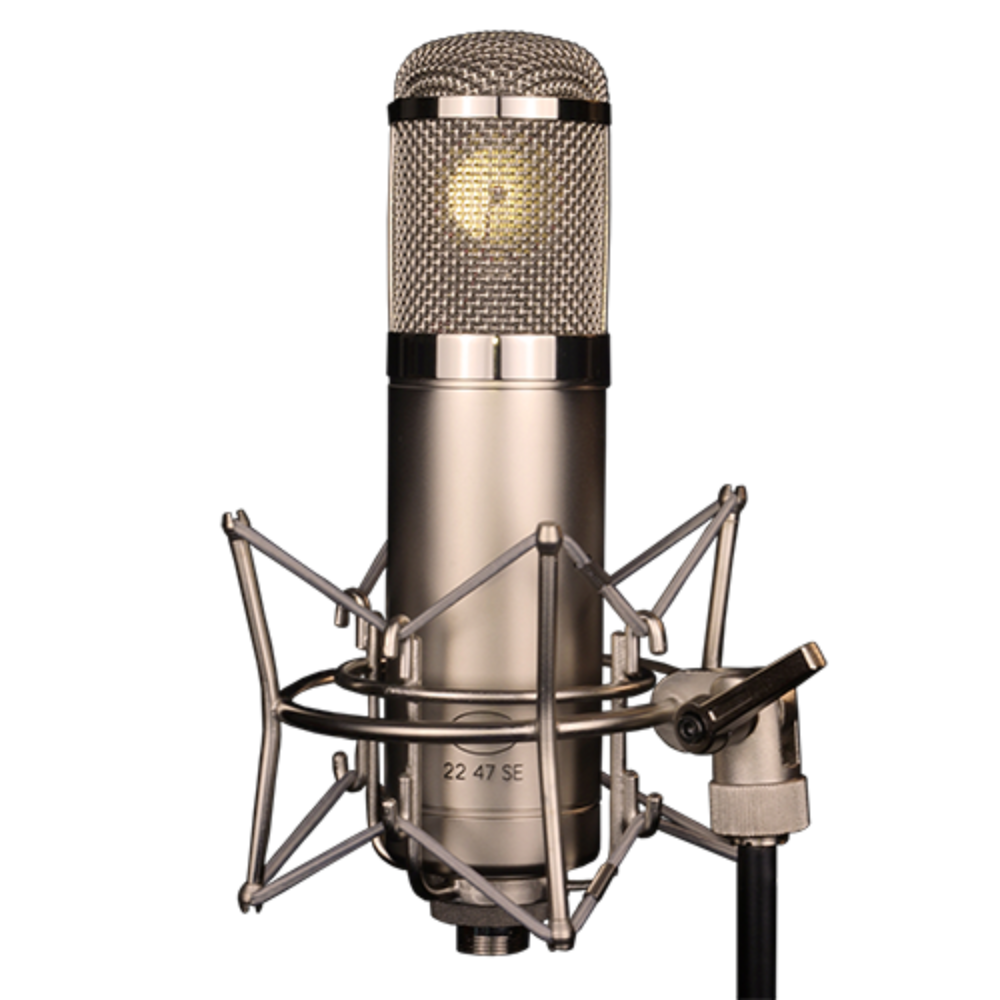

• Shock mount
• Protective flight case

Key Features:
• Inspired by the classic U-47 sound, with a quieter 5693/6SJ7 tubeDual-diaphragm capsule for flexible polar pattern selection
• Smooth midrange, extended low end, and balanced highs
• Vintage tone with modern performance and affordability
• Ideal for vocals, acoustic instruments, horns, and more

Specifications:
• Capsule: 34mm pressure gradient condenser
• Polar Patterns: 9 switchable (omni to figure-eight)
• Frequency Response: 20Hz – 22kHz
• Sensitivity: 12 mV/Pa (-38.4 dBV/Pa)
• Impedance: 200 ohms
• Max SPL: 140 dB
• Equivalent Noise: 14 dB(A)
• Tube Type: 5693 / 6SJ7
• Power Requirement: External power supply (115V or 230V AC)
• Dimensions: 2.34 in x 9.25 in
• Weight: 1.88 lb
• Phantom Power Required: No
